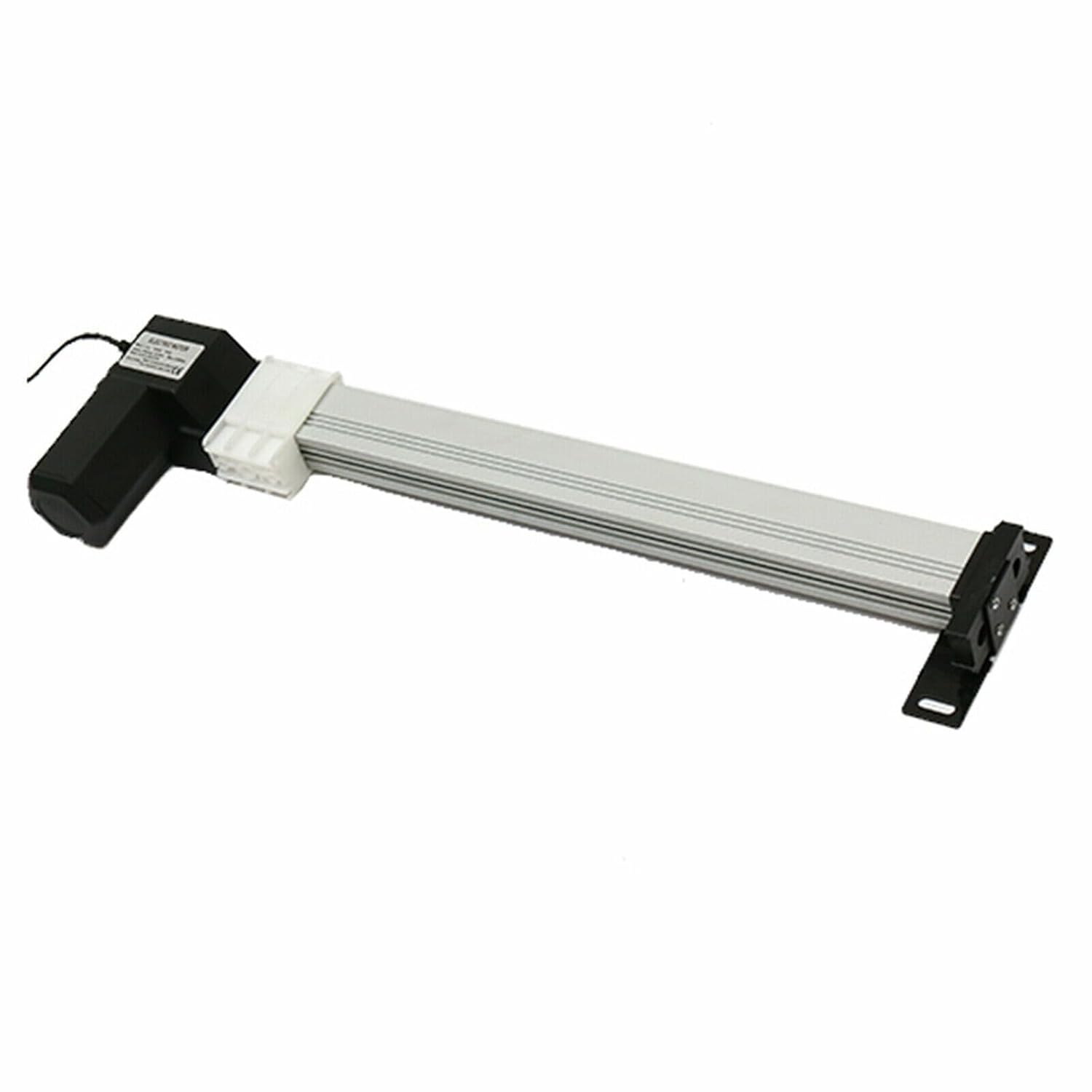

Electric Recliner Lift Chair Replacement Kit - Power Recliner Parts Motor Actuator with 12.99in Stroke and 6000N for Electric Sofa - DC24V

- Product: Power recliner motor actuator- Stroke length: 330mm/12.99in- Total dimensions: 530mm/20.87in- Permanent magnet DC motor drive- Voltage: 24VDC- Maximum push / pull: 600KG/ 6000N- Speed: maximum 5mm/s- Ambient temperature: -5°C to +50°C- Standard protection level: IP44Features:- 24VDC permanent magnet motor- Thrust up to 6000N in push and pull- Elegant and compact design- Built-in limit switches (not adjustable)- Steel back fixture- Standard protection class, IP44- Noise level 48 dB (A) when actuator is not loaded- Duty cycle: Max 10% or 2 minutes continuous use followed by 18 minutes not in usePackages includes:- 1 x push rod motor- 1 x switching power supply- 1 x power cord- 1 x wired manual controller- 1 x cotter pin- 1 x pin- 2 x external hexagon 10 * 20 screw- 4 x flat head screw 8 * 16

• HIGH THRUSH/PULL: This recliner motor has a maximum thrust of 6000N and a maximum pull of 4000N, which can be widely used in fire fighting, home, motor leisure and other fields.
• SAFE & DURABLE: This product is mainly made of plastic and aluminum alloy; it is safe and durable and can resist corrosion and rust for a long service life.
• EASY TO INSTALL: This product is easy to install, just install it yourself. We provide you with the necessary accessories for installation, so you don't need to buy additional ones.
• MORE COMFORTABLE: This recliner's replacement motor produces only 48 decibels of sound, so you can use it in a quiet environment without disturbing others.
• SPECIFICATIONS: Stroke: 330mm/12.99in: Total dimensions: 530mm/20.87in; Voltage: 24VDC; Maximum push/pull: 6000N; Speed: maximum 5mm/ S; Ambient temperature: -5 C + + 50 C; Standard protection level: IP44
